Double Axis Laser Diameter Gauge LDM-50XY LDM60XY

Double direction diameter measurement is the high-accuracy survey installment that uses the laser scan to carry on the no-contacts on-line survey. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.

Applicable to metal wires, glass, pipes, wire and cable, etc. The diameter of the measurement and control. Bi-directional measurement, the average shows that can simultaneously show the wire, pipe diameter, roundness.

2. Technical parameters

Model Measuring Range Differentiation Accuracy

LDM-50XY 0.2-50mm 0.001 ±0.02%×(Reading)±0.002mm

3. The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W

Dimensions:

Measuring head: 372mm×360mm×60mm

4. The Device with the following Characteristics

1. Can be connected PLC, industrial computer.

2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.

3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.

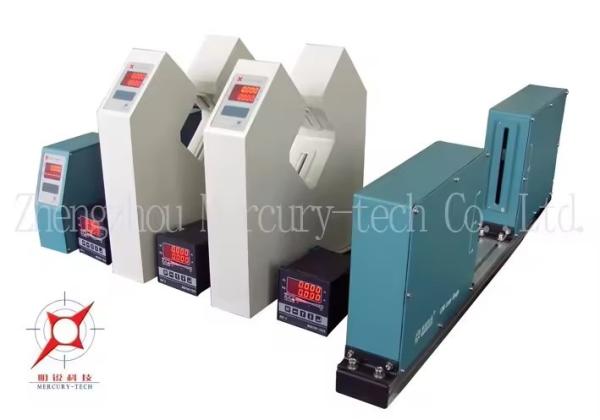

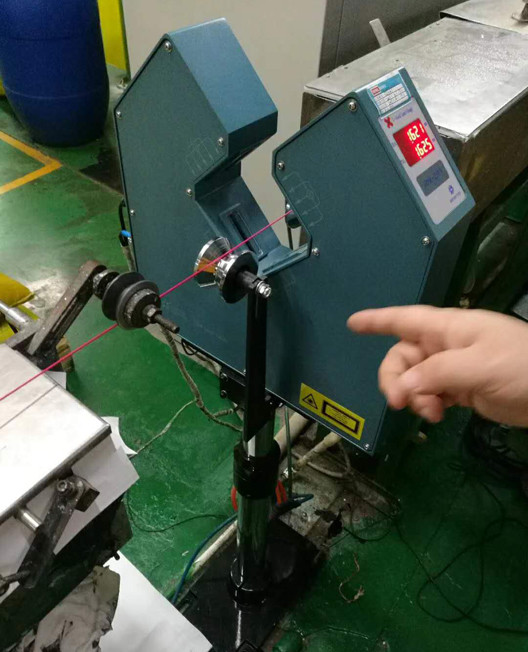

Double axis laser diameter gauge

LDM60XY laser diameter gauge

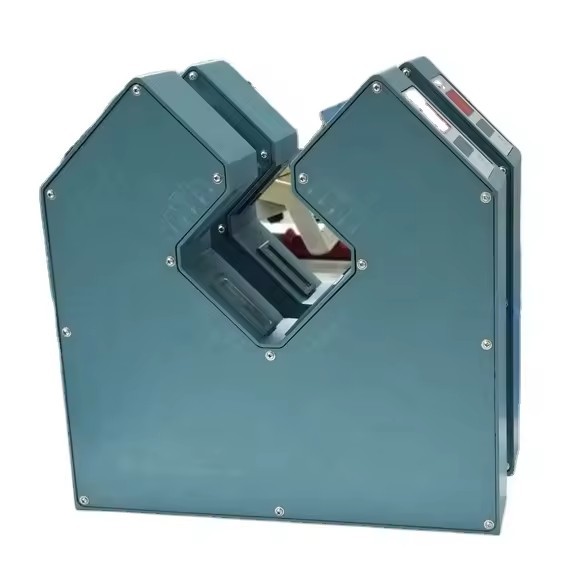

LDM-50XY laser diameter gauge

Double Axis Laser Diameter Gauge LDM-50XY LDM60XY Images
